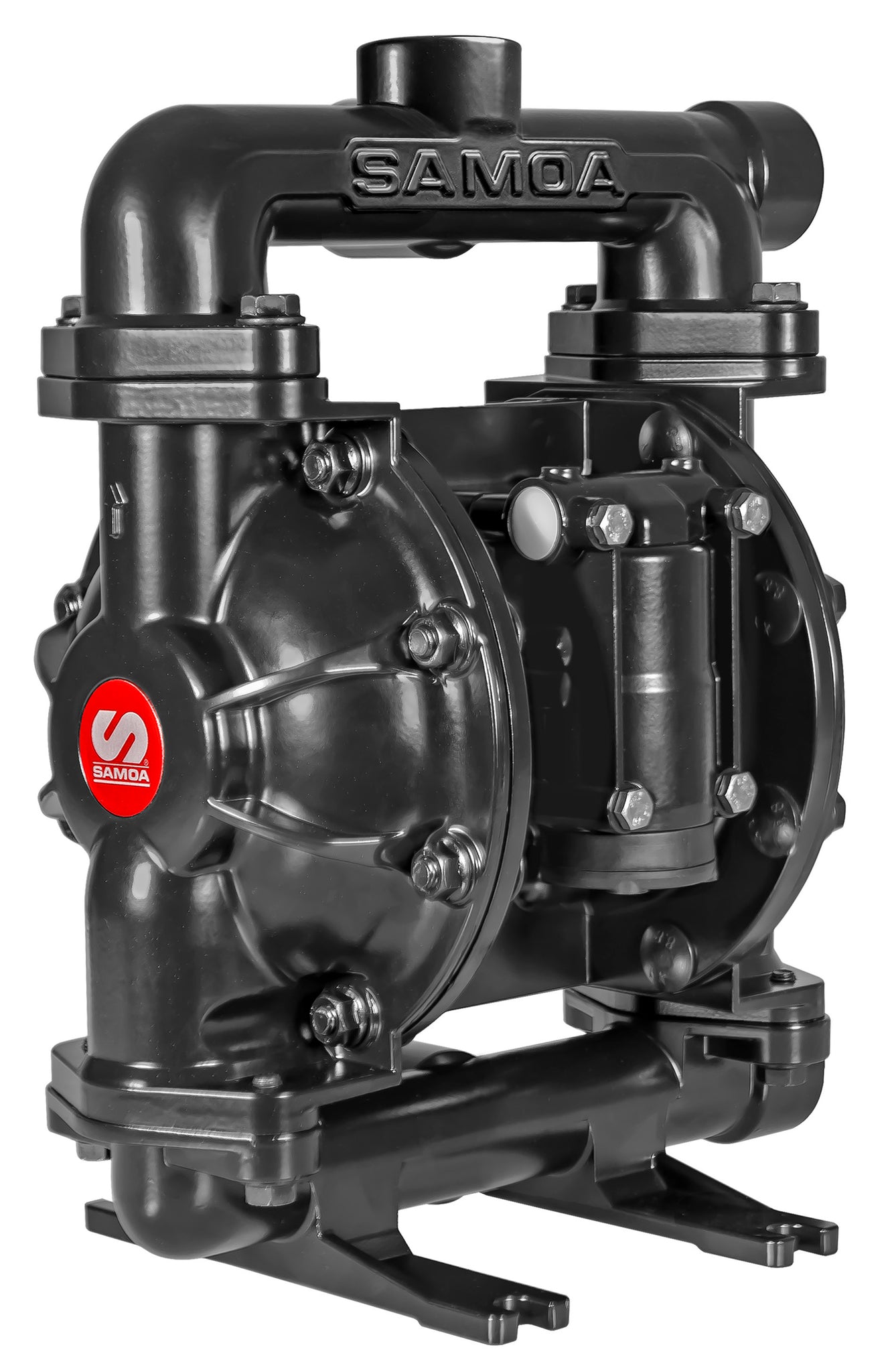

Samoa CP10 Non Metallic AODD Pump - 130 l/min - Antifreeze/Lubricants/Waste Oil/Diesel (CPE551060)
SAMOA Pivot pump for medium to large volume transfer, dosing and dispensing a variety of fluids.
- Frictionless pivoting air valves
- Bolted cover design
- Long life diaphragms
- For large volume transfer, de-watering and fluid evacuation
- Conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery and reliable performance
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Lubricants
- Waste oil
- Waste fluid
- Diesel
- Slurries
Download Instruction Manual for CPE551060
TECHNICAL SPECIFICATIONS
| Pump Pressure Ratio | 1:1Â |
| Maximum free delivery | 130 litre/min |
| Delivery per cycle (2 x strokes) (1) | 0.4 litres |
| Air pressure operating range | 1.5 to 8 bar |
| Solids in suspension maximum size | 3.2 mm |
| Maximum dry suction head (1) | 5 m |
| Maximum wet suction head (1) | 8 m |
| Fluid inlet and outlet connection | 1"Â BSP (F) |
| Air inlet connection | 3/8" NPT (F) |
| Air exhaust port | 1/2" NPT (F) |
| Weight | 5.4 kg |
(1) Data measured with water, air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).
| Part No: | Pump Body | Diaphragms | Balls | Seats | Applications |
| 551060 | Aluminium | Hytrel | Hytrel | Hytrel | Antifreeze, lubricants, waste oil, diesel |
