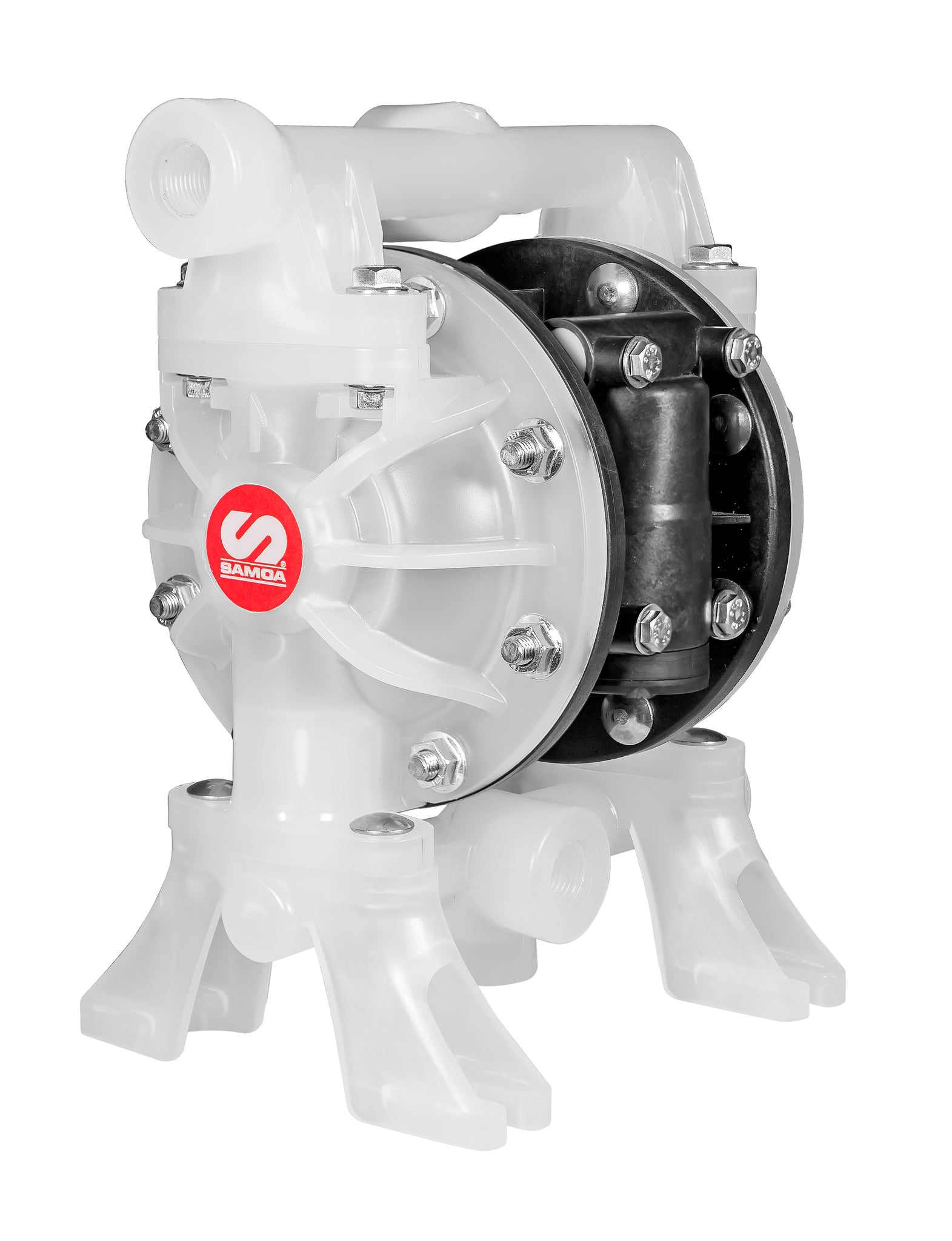

Samoa UP05 Non Metallic AODD Pump - 54 l/min - Antifreeze/Windscreen Wash/AdBlue (CPE552180)
SAMOA Pivot pump for medium volume transfer, dosing and dispensing a variety of fluids.
- Frictionless pivoting air valves
- Bolted cover design
- Long life diaphragms
- Compact design and multiport manifolds to fit into reduced spaces
- Conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery and reliable performance
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Windscreen wash and windscreen wash solutions
- AdBlue/DEF
Download Instruction Manual for CPE552180
TECHNICAL SPECIFICATIONS
| Pump Pressure Ratio | 1:1 |
| Maximum free delivery | 54 litre/min |
| Delivery per cycle (2 x strokes) (1) | 0.15 litres |
| Air pressure operating range | 1.5 to 8 bar |
| Solids in suspension maximum size | 2.5 mm |
| Maximum dry suction head (1) | 5 m |
| Maximum wet suction head (1) | 8 m |
| Fluid inlet and outlet connection | 1/2" BSP (F) |
| Air inlet connection | 1/4" NSPM (F) |
| Air exhaust port | 1/2" NPT (F) |
| Weight | 2.7 kg |
(1) Delivery per cycle depends on the diaphragms material, air inlet pressure and fluid viscosity.
| Part No: | Pump Body | Diaphragms | Balls | Seats | Applications |
| 552180 | Polypropylene | Santoprene | Santoprene | Polypropylene | Antifreeze and windscreen wash solutions, AdBlue/DEF |
