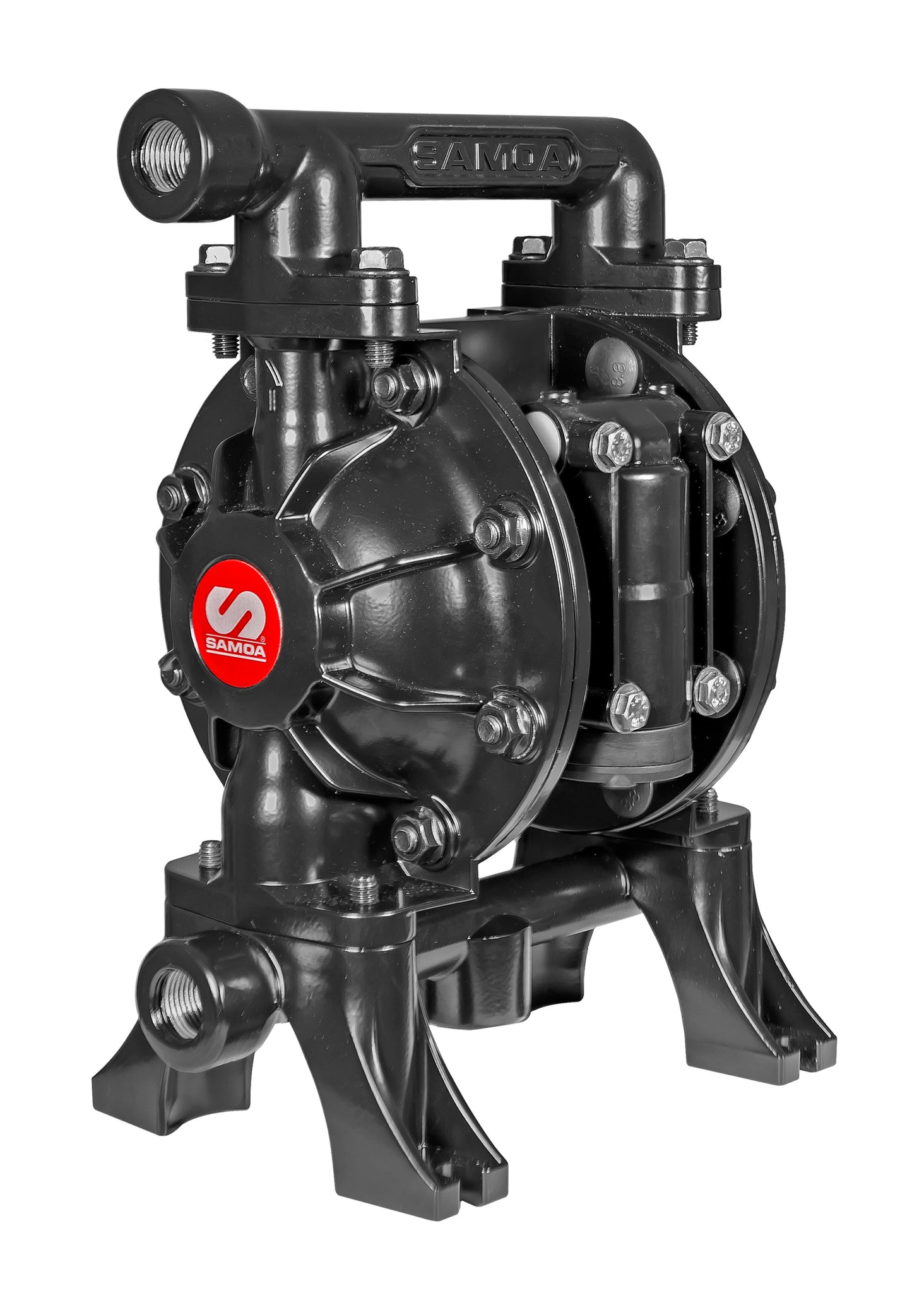

Samoa UP05 Metallic AODD Pump - 54 l/min - Antifreeze Solutions/Lubricants/Waste Oil (CPE552060)
SAMOA Pivot pump for medium volume transfer, dosing and dispensing a variety of fluids.
- Frictionless pivoting air valves
- Bolted cover design
- Long life diaphragms
- Compact design and multiport manifolds to fit into reduced spaces
- Conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery and reliable performance
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Lubricants
- Waste oil
- Waste fluids
Download Instruction Manual for CPE552060
TECHNICAL SPECIFICATIONS
| Pump Pressure Ratio | 1:1Ā |
| Maximum free delivery | 54 litre/min |
| Delivery per cycle (2 x strokes) (1) | 0.15 litres |
| Air pressure operating range | 1.5 to 8 bar |
| Solids in suspension maximum size | 2.5 mm |
| Maximum dry suction head (1) | 5 m |
| Maximum wet suction head (1) | 8 m |
| Fluid inlet and outlet connection | 1/2"Ā BSP (F) |
| Air inlet connection | 1/4" NSPM (F) |
| Air exhaust port | 1/2" NPT (F) |
| Weight | 6.5 kg |
(1) Delivery per cycle depends on the diaphragms material, air inlet pressure and fluid viscosity.
| Part No: | Pump Body | Diaphragms | Balls | Seats | ApplicationsĀ |
| 552180 | Aluminium | Hytrel | Hytrel | Aluminium | Antifreeze solutions, lubricants and waste oil |
