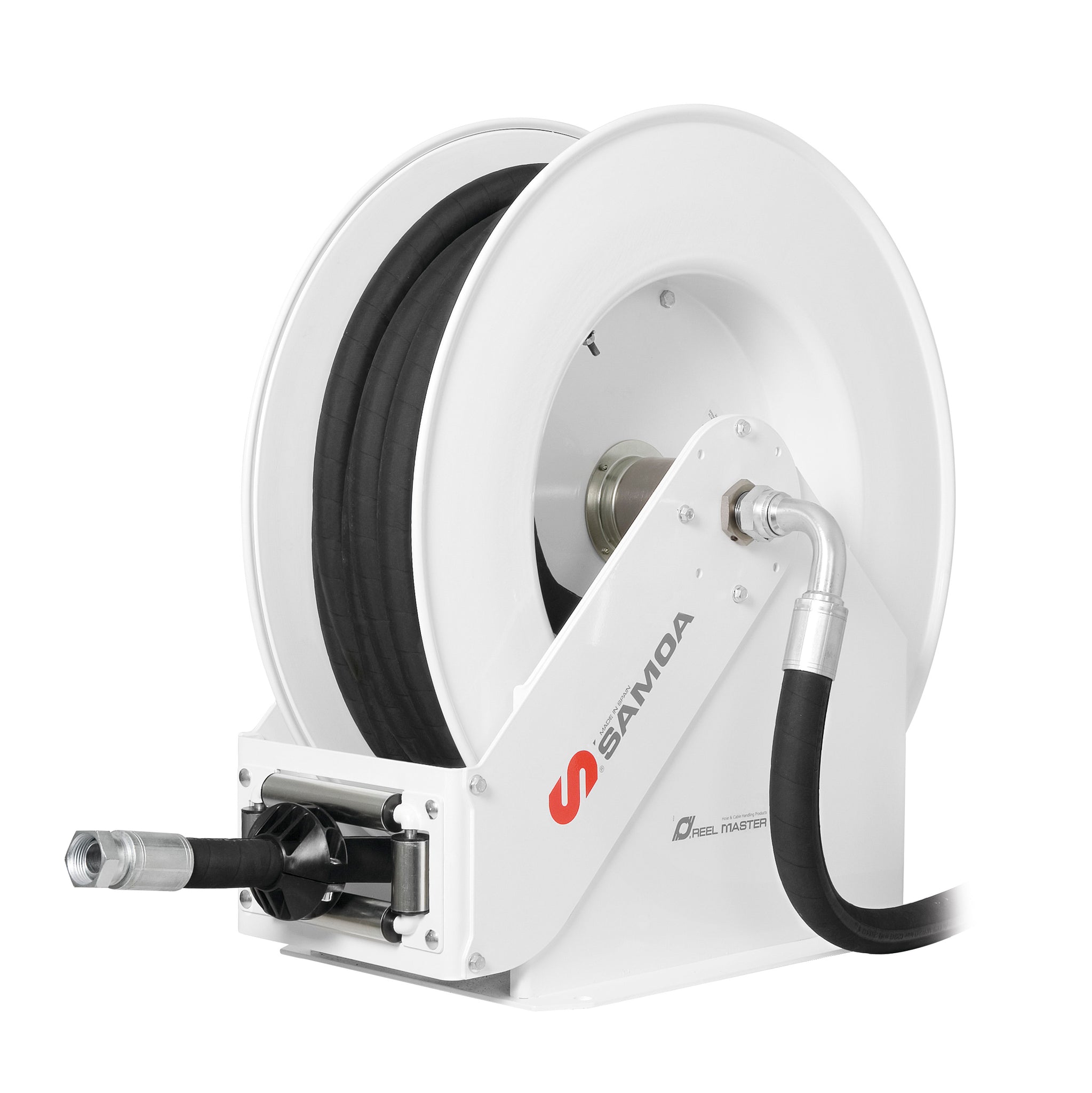

SAMOA RM-100 Heavy-Duty Large Capacity Hose Reel for Lubricants/Waste Oil Evacuation - 15 m x 1" (CPE508225)
SAMOA heavy-duty large capacity hose reel.
Very tough construction large capacity reels, able to stand regular use and abuse in intensive duty applications.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Hose guide arm can be placed in different positions to accommodate any method of mounting.
Narrow footprint allows accommodating more reels on the same surface.
Hose reels with hose include 0.8 m inlet hose.
Mounting:
- Floor
- Tank
Technical Data:
| Fluids Handled: | Lubricants / Waste Oil Evacuation |
| Hose Length: | 15 metres |
| Hose Internal Diameter: | 1" |
| Connecting Hose Inlet: | 1" BSP (F) |
| Delivery Hose Outlet: | 1" BSP (F) |
| Pressure Rating: | 90 bar |
| Weight (with hose): | 56 kg |
Product specifications are subject to change without prior notice.
