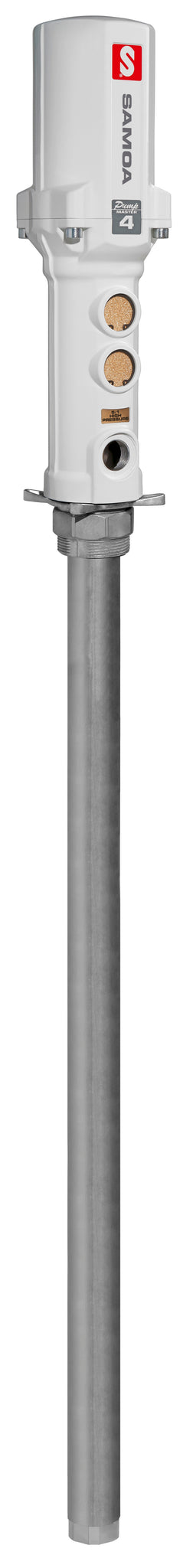

SAMOA® Pumpmaster 4, 5:1 Ratio Oil Pump - 205 Litre Drum Bung Mounted (CPE348120)
SAMOA® Pumpmaster 4, 5:1 Ratio Oil Pump - 205 Litre Drum Bung Mounted (CPE348120)
Double acting air operated medium pressure pump for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operation. Pump includes height adjustable 2" BSP (M) bung adaptor for drum and tank bung mounting. Built-in port for optional pressure relief valve.
Fluids Handled:
- Synthetic and mineral based lubricants
- Hydraulic oil
- Gear oil
- Transmission Fluid
Technical Data:
| Pump Pressure Ratio: | 5:1 |
| Air Pressure Operating Range: | 1.5 - 10 bar (20 to 140 psi) |
| Air Consumption: (1) | 400 NL/min (14 cfm) |
| Maximum Fluid Outlet Pressure: | 50 bar (700 psi) |
| Air Motor Diameter: | 88 mm (3.5") |
| Air Motor Effective Diameter: | 60 mm (2.4") |
| Air Motor Stroke: | 100 mm (4") |

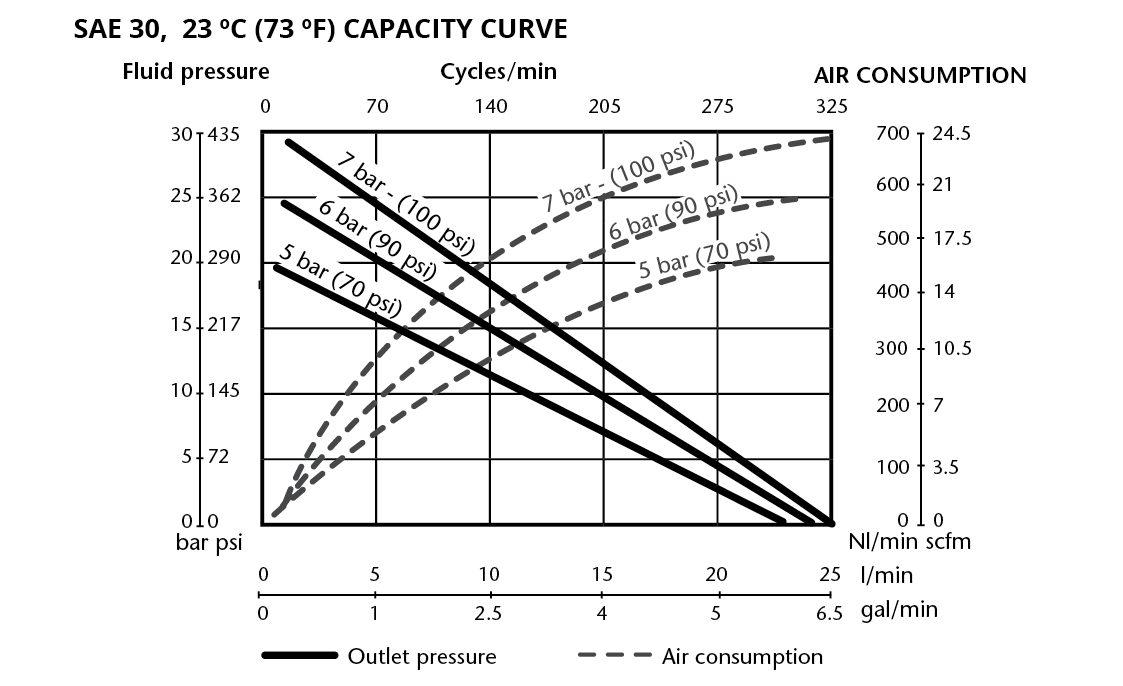

| Delivery at 125 cycles/min: | 10 l/min (2.7 gal/min) |
| Maximum Free Flow Delivery: (2) | 25 l/min (6.6 gal/min) |
| Air Inlet: | 3/8" NPSM |
| Fluid Outlet: | 3/4" NPSM (F) |
| Wetted and seal materials: | Aluminium/Steel/Polyurethane/NBR/PTFE |
| Noise Level: (3) |
95 dB |
(1) - Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
(2) - Maximum free delivery at 7 bar
(3) - Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
