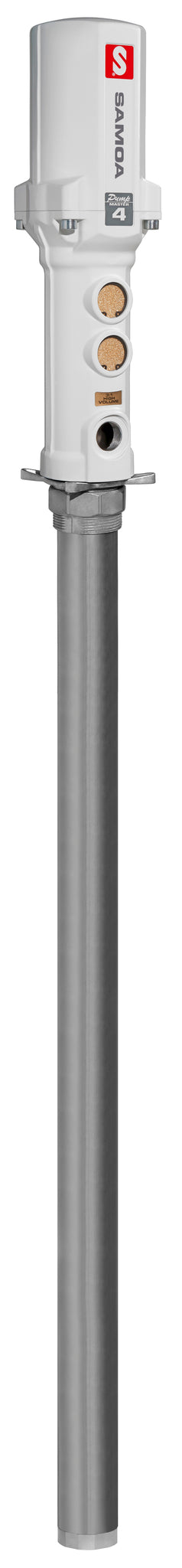

SAMOA® Pumpmaster 4, 3:1 Ratio High Volume Oil Pump - 205 Litre Drum Bung Mounted (CPE341120)
SAMOA® Pumpmaster 4, 3:1 Ratio High Volume Oil Pump - 205 Litre Drum Bung Mounted (CPE341120)
Double acting air operated medium pressure high volume pump for dispensing lubricants in medium sized installations. Pump includes height adjustable 2" BSP (M) bung adaptor for drum and tank bung mounting. Built-in port for optional pressure relief valve.
Fluids Handled:
- Synthetic and mineral based lubricants
- Hydraulic oil
- Gear oil
- Transmission Fluid
Technical Data:
| Pump Pressure Ratio: | 3:1 |
| Air Pressure Operating Range: | 1.5 - 10 bar (20 to 140 psi) |
| Air Consumption: (1) | 285 NL/min (10 cfm) |
| Maximum Fluid Outlet Pressure: | 30 bar (420 psi) |
| Air Motor Diameter: | 88 mm (3.5") |
| Air Motor Effective Diameter: | 60 mm (2.4") |
| Air Motor Stroke: | 100 mm (4") |

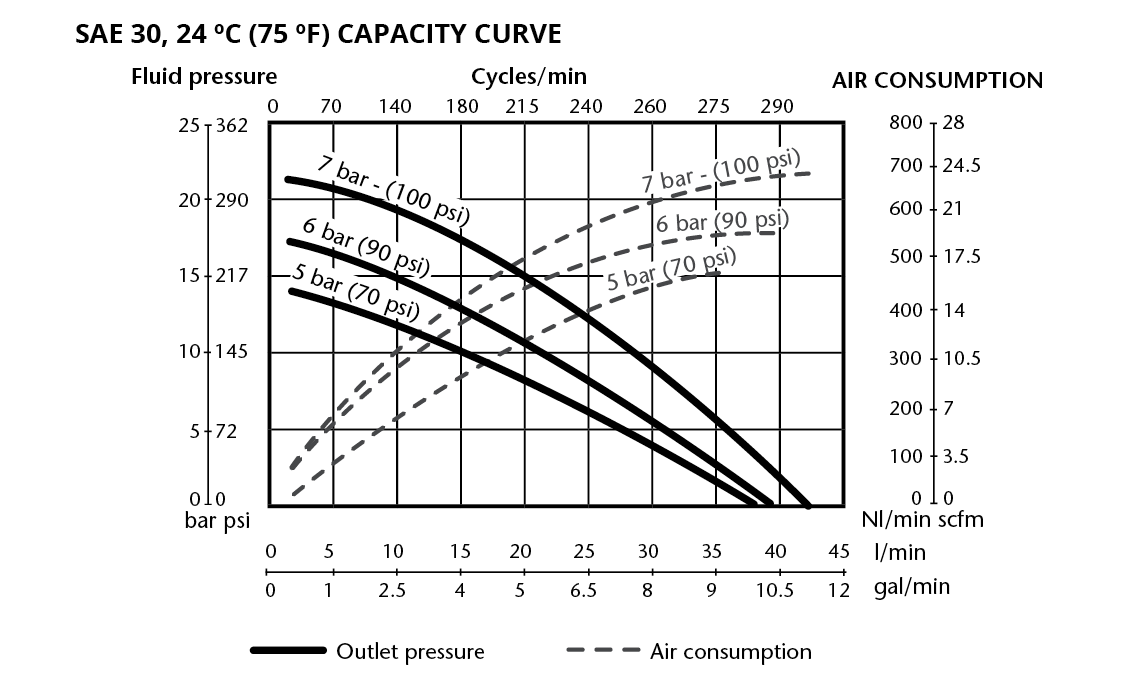

| Delivery at 200 cycles/min: | 10 l/min (2.7 gal/min) |
| Maximum Free Flow Delivery: (2) | 42 l/min (11.1 gal/min) |
| Air Inlet: | 3/8" BSP (F) |
| Fluid Outlet: | 3/4" NPSM (F) |
| Wetted and seal materials: | Aluminium/Steel/Polyurethane/NBR/PTFE |
| Noise Level: (3) |
93 dB |
(1) - Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
(2) - Maximum free delivery at 7 bar
(3) - Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
