SAMOA® Pumpmaster 2, 3:1 Ratio Oil Pump - Universal Stub Pump

SAMOA® Pumpmaster 2, 3:1 Ratio Oil Pump - Universal Stub Pump (CPE353120)

SAMOA®

  • £234.99

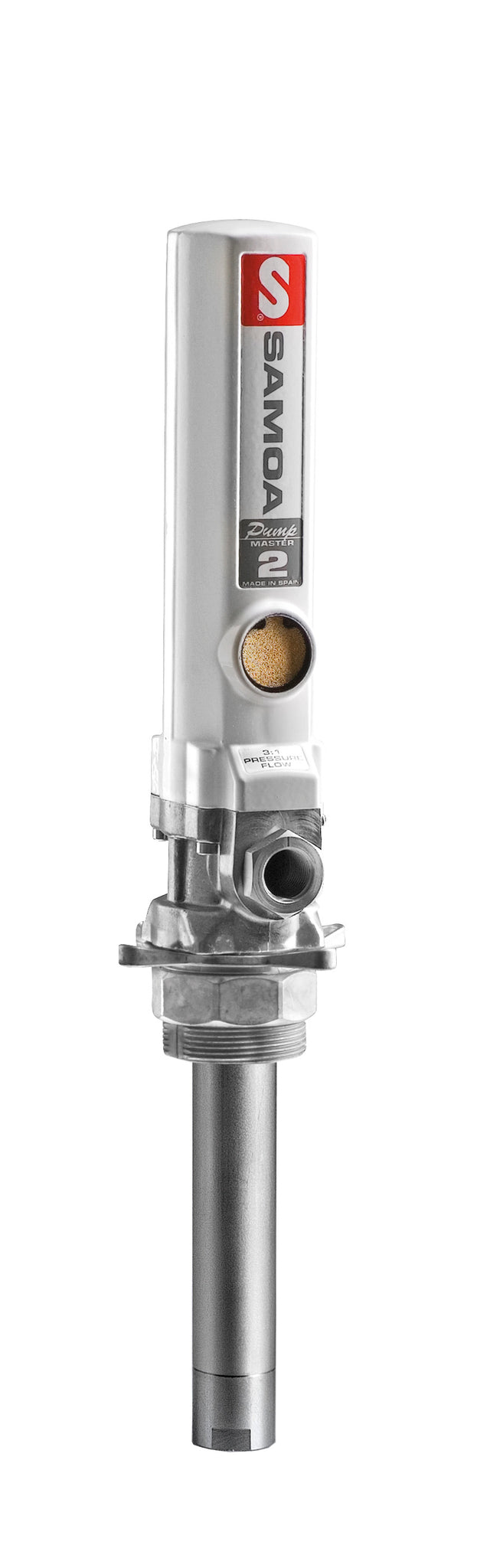

SAMOA® Pumpmaster 2, 3:1 Ratio Oil Pump

Double acting air operated medium pressure pump for dispensing lubricants from mobile units, oil distribution packages and small systems.  Pump includes 2" BSP (M) height adjustable bung adaptor for tank or drum mounting.  Built-in port for optional pressure relief valve.

Fluids Handled:

  • Synthetic and mineral based lubricants
  • Hydraulic oil
  • Gear oil
  • Transmission Fluid

Technical Data:

Pump Pressure Ratio:  3:1
Air Pressure Operating Range:  1.5 - 10 bar (20 to 140 psi)
Air Consumption: (1)  180 NL/min (6.4 cfm)
Maximum Fluid Outlet Pressure:  30 bar (420 psi)
Air Motor Diameter:  51 mm (2")
Air Motor Effective Diameter:  35 mm (1.4")
Air Motor Stroke:  75 mm (3")

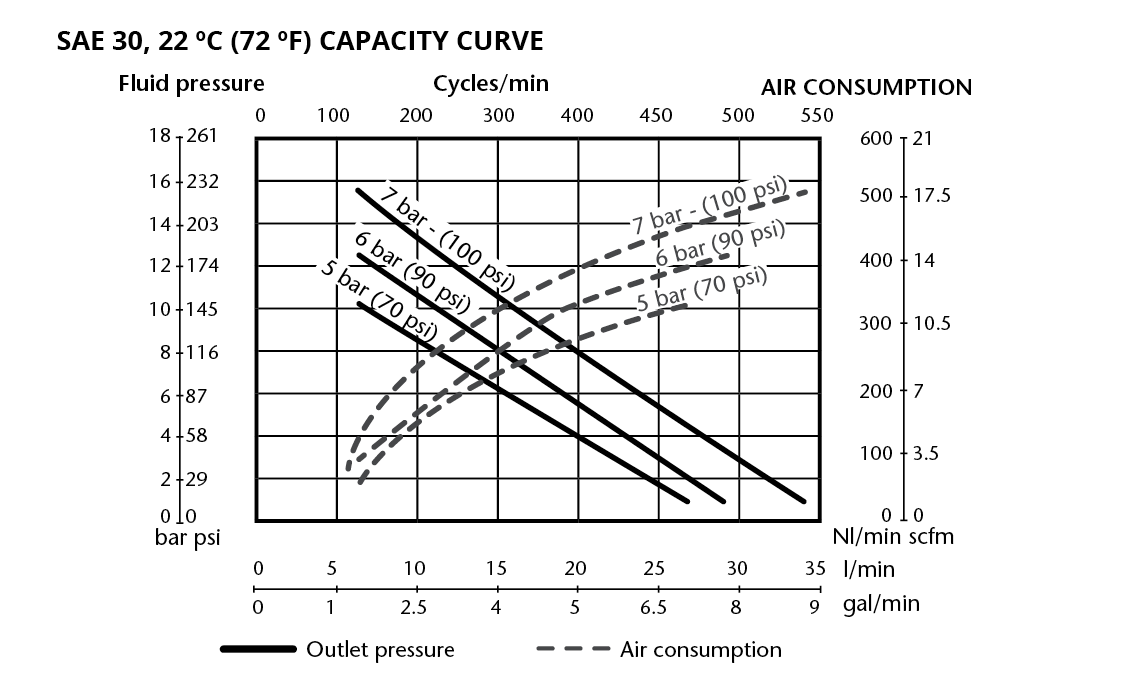

Delivery at 200 cycles/min:  10 l/min (2.7 gal/min)
Maximum Free Flow Delivery: (2)  35 l/min (9.3 gal/min)
Air Inlet:  1/4" BSP (F)
Fluid Inlet (short pump only):  3/4" BSP (F)
Fluid Outlet:  1/2" NPSM (F)
Wetted and seal materials:  Aluminium/Steel/NBR/PTFE
Noise Level: (3)

 80 dB

(1) - Air consumption with 6 bar air inlet pressure and 200 cycles per minute

(2) - Maximum free delivery at 7 bar

(3) - Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
