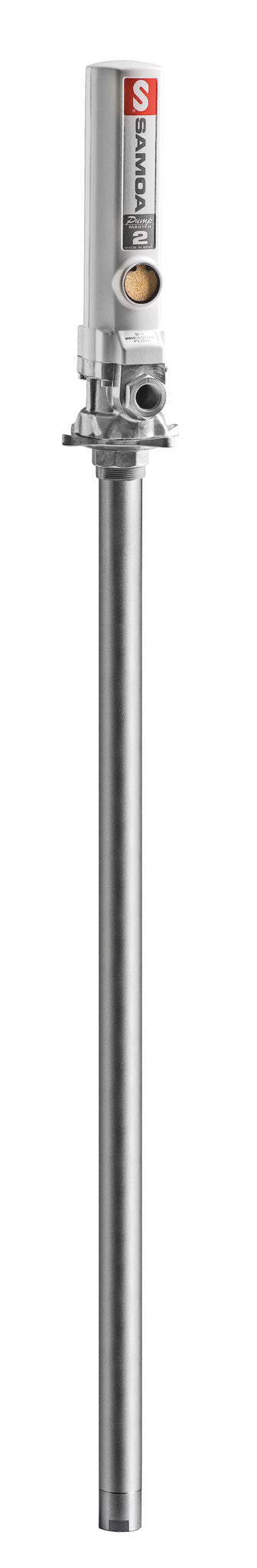

SAMOA® Pumpmaster 2, 1:1 Ratio Oil Pump - 205 Litre Drum Bung Mounted

SAMOA® Pumpmaster 2, 1:1 Ratio Oil Pump - 205 Litre Drum Bung Mounted (CPE352120)

SAMOA®

  • £246.99


SAMOA® Pumpmaster 2, 1:1 Ratio Oil Pump - 205 Litre Drum Bung Mounted (CPE352120)

Double acting air operated low pressure pump for transferring lubricants.  Pump includes 2" BSP (M) height adjustable bung adaptor for tank or drum bung mounting.  Built-in port for optional pressure relief valve.

Fluids Handled:

  • Synthetic and mineral based lubricants
  • Transmission Fluid
  • Hydraulic Oil
  • Diesel

Technical Data:

Pump Pressure Ratio:  1:1
Air Pressure Operating Range:  1.5 - 10 bar (20 to 140 psi)
Air Consumption: (1)  150 NL/min (5.3 cfm)
Maximum Fluid Outlet Pressure:  10 bar (140 psi)
Air Motor Diameter:  51 mm (2")
Air Motor Effective Diameter:  35 mm (1.4")
Air Motor Stroke:  75 mm (3")
Delivery at 150 cycles/min:  20 l/min (5.3 gal/min)
Maximum Free Flow Delivery: (2)  52 l/min (13.7 gal/min)
Air Inlet:  1/4" BSP (F)
Fluid Outlet:  3/4" NPSM (F)
Wetted and seal materials:  Aluminium/Steel/NBR/Acetal/Polyurethane
Noise Level: (3)

 80 dB

(1) - Air consumption with 6 bar air inlet pressure and 150 cycles per minute

(2) - Maximum free delivery at 7 bar

(3) - Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
